MULTILAYER COATED CERAMIC CAPACITORS

EPOXY COATED RADIAL TYPE R SERIES

Small Size, Big Capacitance Epoxy Coated Radial Leaded Monolithic Multilayer Ceramic Capacitor R Series

♠ FEATURES

1. Small Size, big capacitance from 10pF up to 10§Ţ with no polarity, suitable for taking place of aluminum electrolytic capacitors if only the smaller installation space is available.


 3. Due to ceramic intrinsic excellent frequency characteristic, it can serve for high frequency application.
2. The internal electrodes are built inside dielectric then sealed with resin. this structure makes the capacitors highly reliable in quality. 4. As the epoxy powder is applied for coating, this products show excellent resistance to humidity, and no change in the appearance of capacitor surface during soldering or solvent cleaning.

ˇătop

♠ DIMENSIONS

1. LEAD STYLE

L A Y H

2. LEAD SPACE (F) 3. LEAD LENGTH (§¤)

CODE LEAD SPACE REMARK
2 2.5mm ± 1mm 0.1" Pitch
5 5.0mm ± 1mm 0.2" Pitch
7 7.5mm ± 1mm 0.3" Pitch
CODE LEAD LENGTH REMARK
6 6mm ± 1mm Standard
4 4mm ± 1mm
9 9mm ± 1mm
L 25mm(min)

4. BODY SIZE and its Dimension as follows

SIZE
CODE		 LEAD STYLE
AVAILABLE		 CAPACITANCE RANGE (pF) DIMENSION (mm)
NP0 X7R Z5U Y5V L max. W max. T max. §¤±1 d±0.05 F±1
R15 L 10 ~
1,500		 470 ~
33,000		 10,000~
150,000		 10,000~
150,000
3.8 3.8 2.5 6 0.5 2.5
A, H 3.8 5.5 2.5 6 0.5 5.0
R20 Y 1,000~
6,800		 39,000~
330,000		 150,000~
1,500,000		 150,000~
1,000,000		 5.0 6.0 3.0 6 0.5 2.5
A, H 5.0 6.0 3.0 6 0.5 5.0
R25 L - 180,000~
680,000		 820,000~
3,300,000		 820,000~
1,000,000		 6.3 6.5 3.0 6 0.5 5.0
R30 Y - 100,000~¹
220,000		 2,200,000~
10,000,000		 - 7.6 7.6 3.5 6 0.5 5.0


Note : (1) For High voltage capacitors.

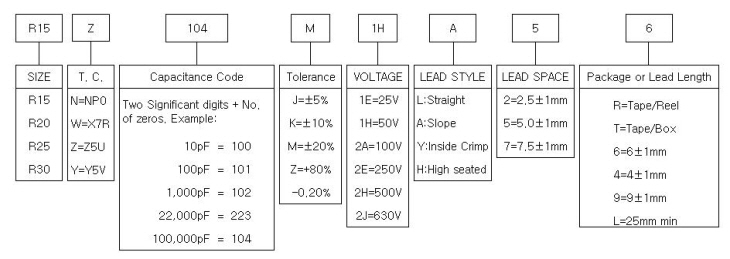

HOW TO ORDER
MULTILAYER CERAMIC CAPACITOR -R Series

ˇătop


♠ TYPICAL PERFORMANCE CHARACTERISTICS

1. Temperature Characteristics
•Capacitance value - Temperature Characteristics
• Capacitance value - Temperature Characteristics

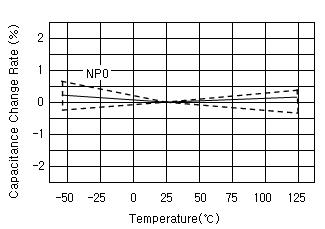

  Temperature Compensating   (Test Condition)1MHz 1Vrms

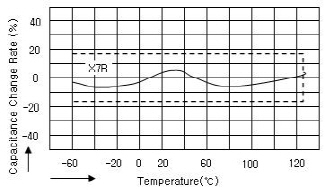

High Dielectric Constant (Test Condition) 1KHz 1Vrms

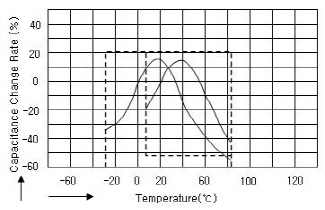

High Dielectric Constant (Test Condition) 1KHz 1Vrms




2. DC Voltage Characteristics

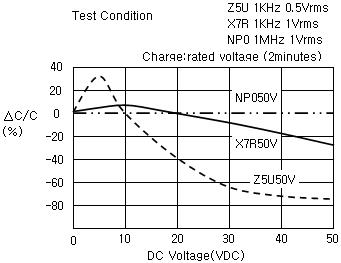

•Capacitance - DC voltage characteristis

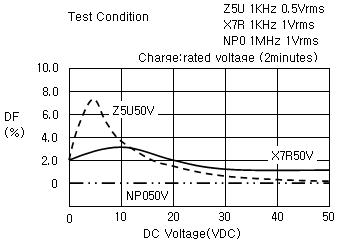

•Q.DF-DC voltage characteristics

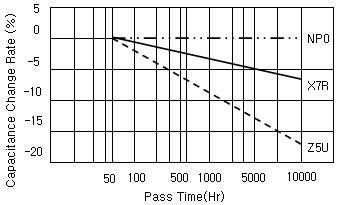

3.Aging Characteristics

EPOXY COATED AXIAL TYPE A SERIES

Compact Size, Big Capacitance Epoxy Coated Axial Leaded Monolithic
Multilayer Ceramic Capacitor A Series

ˇătop

♠ FEATURES

1. Can be applied for automatically inserted operation in standard taping and reel package. 3. With a monolithic multilayer built inside, the terminal electrodes and leads are positively soldered and coated with epoxy resin to acquire excellent resistance to humidity.
2. By a fully automatic taping machine assures high precision in taping strength, position, and no skinpping of capacitors. 4. Smaller size to save the space.

ˇătop

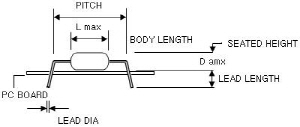

♠ DIMENSIONS

( Unit in min )
Type Dimension (mm)
L max D max d ± 0.05
A15 3.40 2.50 0.5

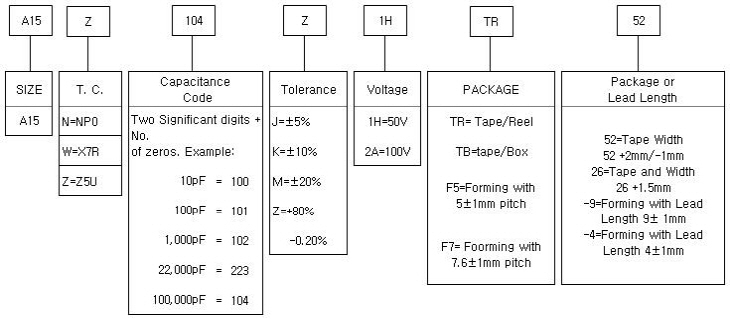

HOW TO ORDER
MULTILAYER CERAMIC CAPACITOR - A SERIES
