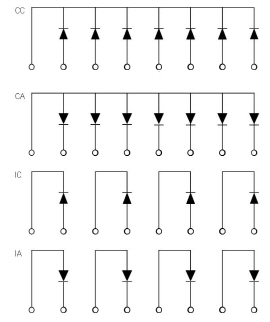

DIODE NETWORK-----------------------------------------------------------------

TYPE L H (Max) T (Max) C ±0.5 d ±0.5 f ±0.2 5Pin 12.7 9 4.0 3.5 0.5 2.54 6Pin 12.7 7Pin 15.3 8Pin 17.8 9Pin 20.4 10Pin 22.9 11Pin 25.4 12Pin 30.5

High-Speed Switching Diode Array Series Absolute Maximum Ratings (Ta = 25℃) Item Symbol 35V 75V Unit Peak Reverse Voltage 40 80 V Reverse Voltage 35 75 V Surge Current (I㎲) * 6.0 6.0 A Surge Current (I㎲) 4.0 4.0 mA Peak Forward Current * 450 450 mA Peak Forward Current 300 300 mA Average Forward Current 150 150 mA Average Forward Current * 100 100 mA Junction Temperature 125 125 ℃ Storage Temperature -55~ +125 -55~ +125 ℃                       * mark shows total value.

Item	Symbol	Condition	35V		75V		Unit
			Type	Max.	Type	Max
Forward Voltage			0.72	1.0	0.72	1.0	V
Forward Voltage			0.88	1.1	0.88	1.1	V
Forward Voltage			1.0	1.2	1.0	1.2	V
Reverse Current			-	0.1	-	-	㎂
Reverse Current			-	-	-	1.1	㎂
Terminal Capacitance			2.5	4.0	2.0	4.0	㎊
Reverse Recovery			-	4.0	-	4.0	㎱

HOW TO ORDER
