RATING
| E-12 Series Capacitance Range |
CS | CL |
| 10抗~0.1技 | 0.1技~1技 | |

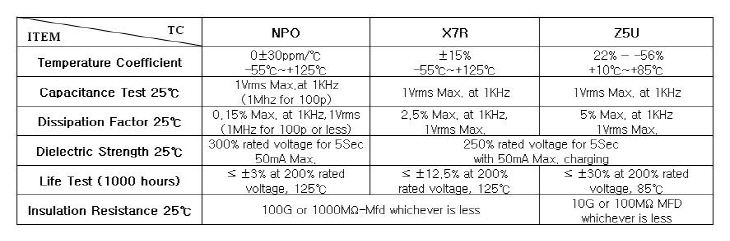

| T . C . R | NPO, X7R, Z5U | |
| Capacitance Tolerance | J, K, M, Z | |
| Rated Voltage(VDC) | 25V, 50V, 100V | |

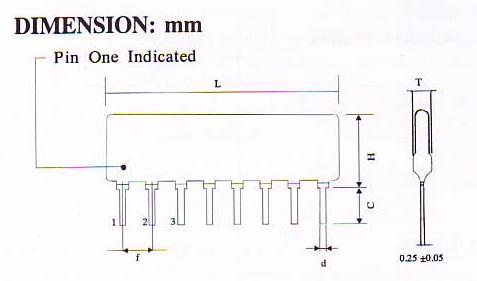

| TYPE | L (MAX) |
H(Max) | T (max) |
C ±0.5 |
d ±0.05 |
f ±0.2 |
|
| CS | CL | ||||||
| 4Pin | 10.2 | 7.5 | 12.7 |
3.5 | 3.5 | 0.5 | 7.54 |
| 5Pin | 12.7 | ||||||
| 6Pin | 15.3 | ||||||
| 7Pin | 17.8 | ||||||
| 8Pin | 20.4 | ||||||
| 9Pin | 22.9 | ||||||
| 10Pin | 25.4 | ||||||
| 11Pin | 28.0 | ||||||
| 12Pin | 30.5 | ||||||
| 13Pin | 33.1 | ||||||
| 14Pin | 35.6 | ||||||
